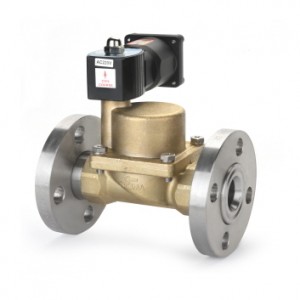

HPG-EX 21S50F / 21S60F / 21S70F / 21S80F / 21S90F
FEATURES
- The valve will be operated by a pilot-piston.
- The valve is workable at up to 180℃ and the maximum steam pressure of 0.7MPa.
Explosion-proof Certificate No.: 15-GA2BO-0257X
Explosion-proof grade : Ex d mb IIC T4 IP67
APPLICATIONS
- Steam piping, Washing machine, Steam cooker, Sterilizers, Food & beverage processing, Steam press, Dyeing machines, etc. such as fire explosive atmospheres.
※ Attention : Please restrict the use when the fluid used is in a viscous or contain impurities, or when a disturbance of the pilot operation concerned the accumulation of corrosive
|
HPG-EX 21S50F / 21S60F / 21S70F / 21S80F / 21S90F
* ROTARY FLANGE PATENTED PRODUCT
|
|
|
SYMBOL
|
|
DIMENSION
|
MODEL
|
L
|
H
|
A
|
B
|
C
|
CONNECTION
|
WEIGHT
|
|
HPG-EX 21S50F (20A)
|
134
|
156
|
118
|
100
|
58
|
KS 10K RF 20A
|
3,570g
|
|
HPG-EX 21S60F (25A)
|
147
|
172.5
|
118
|
125
|
58
|
KS 10K RF 25A
|
4,840g
|
|
HPG-EX 21S70F (32A)
|
175
|
195.5
|
118
|
135
|
58
|
KS 10K RF 32A
|
7,330g
|
|
HPG-EX 21S80F (40A)
|
175
|
198
|
118
|
140
|
58
|
KS 10K RF 40A
|
7,450g
|
|
HPG-EX 21S90F (50A)
|
195
|
213
|
118
|
155
|
58
|
KS 10K RF 50A
|
10,120g
|
STANDARD SPECIFICATION
|
WORKING FLUID
|
STEAM
|
PROTECTION GRADE
|
Ex d mb IIC T4 IP67
|
|
OPERATING PRESSURE
|
0.05 ~ 0.7 MPa
|
FLUID TEMPERATURE
|
0 ~ 180℃
|
|
VOLTAGE
|
AC 220V, AC 110V (50~60Hz)
DC 24V, DC 12V
|
BODY MATERIAL
|
BRASS
|
|
POWER CONSUMPTION
|
AC 220V : 19VA
DC 24V : 14W
|
SEAT MATERIAL
|
TEFLON
|
|
TEMPERATURE GRADE
|
T4 (≤135℃)
|
OPTION
|
CONNECTION : PF, NPT
|
* Specification of the products are subject to change without prior notice for quality improvement.
