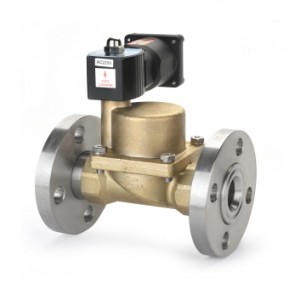

2WAY EXPLOSION PROOF SOLENOID VALVE FOR STEAM
(Normally Closed type, Pilot Control)



 HPG-EX 21S50F / 21S60F / 21S70F / 21S80F / 21S90F

FEATURES

- The valve will be operated by a pilot-piston.

- The valve is workable at up to 180℃ and the maximum steam pressure of 0.7MPa.

 919df42e8dcd746a7df8b9984a79b0ea_1473144     Explosion-proof Certificate No.15-GA2BO-0257X

                Explosion-proof grade : Ex d mb IIC T4 IP67





APPLICATIONS

- Steam piping, Washing machine, Steam cooker, Sterilizers, Food & beverage processing, Steam press, Dyeing machines, etc. such as fire explosive atmospheres.


※ Attention : Please restrict the use when the fluid used is in a viscous or contain impurities, or when a disturbance of the pilot operation concerned the accumulation of corrosive







 HPG-EX 21S50F / 21S60F / 21S70F / 21S80F / 21S90F

ROTARY FLANGE PATENTED PRODUCT




 SYMBOL



 919df42e8dcd746a7df8b9984a79b0ea_1473130





DIMENSION

 MODEL

CONNECTION

WEIGHT

 HPG-EX 21S50F (20A)

 134

156

  118

  100

  58

  KS 10K RF 20A

  3,570g

 HPG-EX 21S60F (25A)

 147

 172.5

 118

 125

 58

 KS 10K RF 25A

 4,840g

 HPG-EX 21S70F (32A)

 175

 195.5

 118

 135

 58

 KS 10K RF 32A

 7,330g

 HPG-EX 21S80F (40A)

 175

198

 118

 140

 58

 KS 10K RF 40A

 7,450g

 HPG-EX 21S90F (50A)

 195

 213

 118

 155

 58

 KS 10K RF 50A

 10,120g





STANDARD SPECIFICATION

 WORKING FLUID

STEAM

PROTECTION GRADE

Ex d mb IIC T4 IP67

OPERATING PRESSURE

0.05 ~ 0.7 MPa

FLUID TEMPERATURE

 0 ~ 180℃

VOLTAGE

AC 220V, AC 110V (50~60Hz)

DC 24V, DC 12V

BODY MATERIAL

 BRASS

POWER CONSUMPTION

AC 220V : 19VA

DC 24V : 14W​

SEAT MATERIAL

TEFLON

TEMPERATURE GRADE

T4 (≤135℃)

OPTION

  CONNECTION : PF, NPT





* Specification of the products are subject to change without prior notice for quality improvement.
