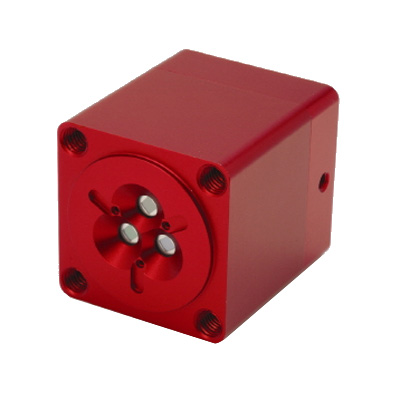

• Type : Triple Infrared, Outdoor, Non explosion-proof, Particulate
• Nominal sensing range : 50m
• Sensing angle : 90°, Cone type
• Explosion-proof class : T6,IP67,IIC(Korea Gas Safety
  Corporation)
• Operating temp. :-40~+85℃
• Keeping temp. :-50~+90℃
• Humidity : 0~95%
• Output signal
  › RELAY
  › Fire : 5A(250VAC, 30VDC), A connect point
  › O.C (Open Collector)
    Fire : MAX DC 32V, 10mA
    Error : MAX DC 32V, 10mA
  › 4~20mA
  › RS485
• Fuction
  › Diagnostic sensor fault enable - Self test
  › Remote self diagnostic ON/OFF control ( BIT )


• Material : Aluminum 6061
• Surface : Anodizing Process
• Color : Red
• Weight : About 0.53㎏
• External : 64 × 64 × 75mm, Hexahedral, Connector 1/2 inch PF


• Power Cunsumption : 3.9W
• Voltage : DC 24V,(17~30V, pulsating current enable)
• Current
  › Idel(Sensing) : 100mA
  › Fire(Activating, Emergency)(Sensing) : 120mA
  › Self test : 170mA
