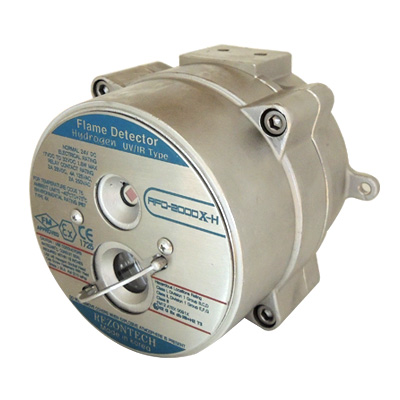

• Type : Ultraviolet and Infrared, Hydrogen flame detector
• Detection Range : 100ft(30m) for n-Heptane fire
15ft(4.5m) for Hydrogen (30" plume)
• Field of View : Horizontal 90°, Vertical 90°
• Temperature Range Operating : -40℃ to +75℃
• Storage : -50℃ to +80℃
• Humidity Range : 0 to 95% relative humidity
• Explosion proof :
› Class I Division 1 Groups B,C and D(FM)
› Class II Division 1 Groups E,F and G(FM)
› Class III (FM)
› Ex d IIB+H2, T6(ATEX)
• Output
› Relay
- Fire Alarm, Fault Alarm, Warning Alarm
- From A or B Selectable, 28vdc, 2A
› 4-20mA
› RS-485
• Dimensions (body) : W134 x H117 x D120 mm
W5.3 x H4.6 x D4.7Inch
• Enclosure Material : Stainless steel 316
• Shipping Weight : 3.4 kg (with Bracket)
• Color : Metal
• Conduit Entry Size : 2 X 1/2 inch NPT, M20 X 1.5
• Operating Voltage : Typical DC24V (17 to 32).
• Power Consumption : 1.8W maximum at 32 vdc
• Wiring : 14AWG(2.08mm2) to
24AWG(0.205mm2) shielded
cable recommended.
• Electromagnetic Compatibility : EMC Protected
