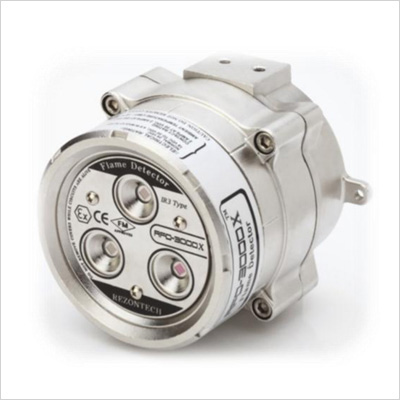

• Type : Triple Infrared
• Detection Range : 200ft(60m(FM), 50m(KFI)) for n-Heptane fire
• Field of View : Horizontal 90°, Vertical 90°
• Temperature Range Operating : -40℃ to +75℃
• Storage : -50℃ to +80℃
• Humidity Range : 0 to 95% relative humidity
• Explosion proof :
  › Ex d IIB+H2 T5 IP66/67(KGS)
  › II 2G Ex db IIB+H2 T5 Ta= -40°C to 75°C IP66 / IP67(ATEX)
  › Class I Division 1 Groups B,C and D(FM)
  › Class II Division 1 Groups E,F and G(FM)
  › Class III (FM)
  › Ex dIIC T5 Gb DIP A21 TA, T5 IP67(NEPSI)
• Output
  › Relay
    - Fire Alarm, Fault Alarm, Warning Alarm
    - From A or B Selectable, 30vdc, 3A
  › 4-20mA
  › RS-485


• Dimensions : W134 x H117 x D112 mm
                    W5.3 x H4.6 x D4.3 Inch
• Enclosure Material : Stainless steel 316
• Shipping Weight : 7.5 kg
• Color : Metal
• Conduit Entry Size : 2 x 1/2 inch NPT, M 20X1.5


• Operating Voltage : Typical DC24V (18 to 30)
• Power Consumption : 4.5W maximum at 30 vdc
• Wiring : 14AWG(2.08mm2) to
              24AWG(0.205mm2) shielded
              cable recommended.
• Electromagnetic Compatibility : EMC Protected
