Introductions

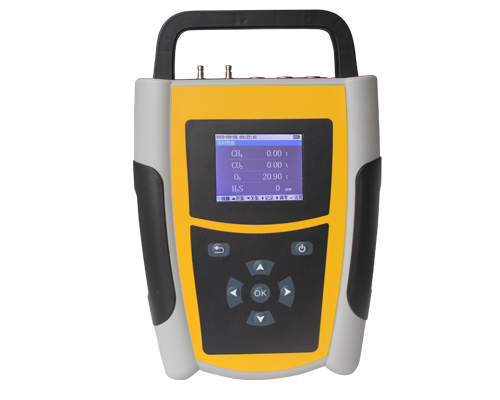

Gasboard-3200Plus Handheld Biogas Analyzer is designed to measure CH4, CO2, O2, H2S standard gases and optional H2, CO gases, even biogas flow monitoring. This model is powered by lithium battery and can be used without AC power. It is modular sensor design ensures easy on operation and maintenance.
Applications
Biogas plants, landfill sites, water treatment, sludge digestion, biomethane production, CDM project ,anaerobic digestion and other fermentation processes.
Specifications
-
|
Components |
CH4, CO2 |
NDIR |
|
O2, H2S |
ECD |
|
H2 and CO (optional) |
ECD |
|
Gas flow (optional) |
Thermal mass flow probe |
|
Range |
CH4 |
0～100 % |
|
CO2 |
0～50 % |
|
O2 |
0～25 % |
|
H2S |
0～10000 ppm |
|
H2 |
0～2000 ppm |
|
CO |
0～2000 ppm |
|
Accuracy |
CH4 |
±2%FS |
|
CO2 |
±2%FS |
|
O2 |
±3.0%FS |
|
H2S |
±3.0%FS |
|
H2 |
±3.0%FS |
|
CO |
±3.0%FS |
|
Lithium battery pack |
Rechargeable |
|
Power supply |
5 V/ 2A DC |
|
Flow |
（0.7-1.2 ）l/min |
|
GPS sensor |
Positioning and location |
|
Ambient pressure |
（700 ～ 1200） mbar |
|
Relative humidity |
0～95% |
|
Dimension |
276 × 195 × 66 mm （Length×width×height） |
|
Display |
High-resolution colored 3.2-inch |
|
Communication |
USB port, blue tooth 4.0 |
Featrues
1) Up to 6 gases measuring: CH4, CO2, H2S, O2, H2, CO gases, even biogas flow monitoring
2) Modular sensor design ensures easy on operation and maintenance
3) Blue tooth communication to upload testing data into Mobile by specified APP directly
4) Rechargeable Lithium battery
5) GPS positioning and location
6) Lightweight, robust design, user-friendly handheld biogas analyzer
|
