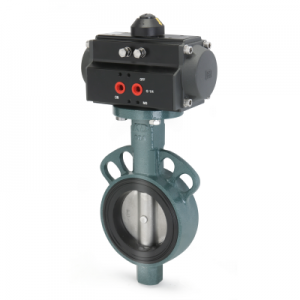

PNEUMATIC BUTTERFLY VALVE
HAD-40BF / 50BF / 65BF / 80BF / 100BF / 125BF / 150BF / 200BF / 250BF / 300BF
APPLICATION
- Piping for water or steam, Industrial machinery piping, Sterilizers, Boilers, Air conditioners, Lubricators,
Medical equipments, Vacuum packing, Automation equipment, Specially equipped Vehicles
DIMENSION
|
MODEL
|
ACT SIZE
|
VALVE SIZE
|
L
|
H1
|
H2
|
H3
|
n-ØH
|
ØC
|
ØD
|
A
|
B
|
|
HAD-40BF
|
HAD-50
|
40A
|
40
|
54
|
122
|
89
|
4-19
|
105
|
40
|
155
|
70
|
|
HAD-50BF
|
HAD-50
|
50A
|
43
|
57
|
129
|
89
|
4-19
|
120
|
52
|
155
|
70
|
|
HAD-65BF
|
HAD-63
|
65A
|
46
|
67
|
139
|
105
|
4-19
|
140
|
65
|
168
|
83
|
|
HAD-80BF
|
HAD-63
|
80A
|
46
|
78
|
156
|
105
|
8-19
|
150
|
80
|
168
|
83
|
|
HAD-100BF
|
HAD-75
|
100A
|
52
|
100
|
164
|
123
|
8-19
|
175
|
100
|
219
|
96
|
|
HAD-125BF
|
HAD-90
|
125A
|
56
|
107
|
187
|
135
|
8-23
|
210
|
125
|
249
|
106
|
|
HAD-150BF
|
HAD-90
|
150A
|
56
|
122
|
200
|
135
|
8-23
|
240
|
150
|
249
|
106
|
|
HAD-200BF
|
HAD-100
|
200A
|
60
|
160
|
238
|
148
|
12-23
|
290
|
198
|
274
|
122
|
|
HAD-250BF
|
HAD-125
|
250A
|
68
|
215
|
283
|
187
|
12-25
|
355
|
248
|
355
|
133
|
|
HAD-300BF
|
HAD-145
|
300A
|
78
|
245
|
316
|
206
|
12-25
|
400
|
298
|
417
|
170
|
HAD-○○BF(Cast Iron), HAD-○○SBF(Stainless Steel), HAD-○○TBF(Teflon Sheet), HAD-○○HBF(High Performance)
각 치수는 동일합니다.
STANDARD SPECIFICATION
|
DIVISION
|
BASIC SPECIFICATION
|
OPTION
|
|
PORT SIZE
|
32A ~ 500A
|
|
WORKING PRESSURE
|
KS 1.0 MPa
|
KS 2.0 MPa
ANSI #150, #300
|
|
CONNECTION TYPE
|
WAFER
|
FLANGED, LUGGED, GLOOVE
|
|
BODY MATERIAL
|
GC
|
GCD, SUS304, SUS316(L), AL
|
|
MATERIAL
|
Disk : SUS304
Sheet : EPDM
|
SUS316(L), AL, PTFE, NBR, RTFE, METAL
|
|
FLUID TEMPERATURE
|
0℃ ~ 80℃
|
140℃, 200℃, 230℃, 300℃
|
|
|
