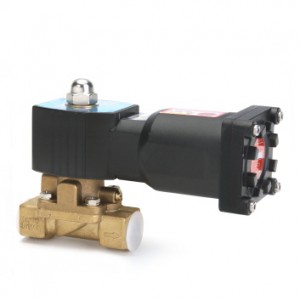

HPG-EX 22W30 / 22W40 / 22W50 / 22W60
FEATURES
-Maximized amount of fluid to the diaphragm mode.
Explosion-proof Certificate No.: 15-GA2BO-0257X
Explosion-proof grade : Ex d mb IIC T4 IP67
APPLICATIONS
Gas pipelines, Chemical process piping, Power plants, such as fire explosive atmospheres.
※ Attention : Please restrict the use when the fluid used is in a viscous or contain impurities,
or when a disturbance of the pilot operation concerned the accumulation of corrosive.
|
HPG-EX 21W30 / 21W40 / 22W30 / 22W40
|
|
|
HPG-EX 21W50 / 21W60 / 22W50 / 22W60
|
|
|
SYMBOL
|
|
DIMENSION
|
MODEL
|
L
|
H
|
A
|
B
|
C
|
CONNECTION
|
WEIGHT
|
|
HPG-EX 21W30 (10A)
|
72
|
120
|
118
|
43
|
58
|
Rc 3/8"
|
1,066g
|
|
HPG-EX 21W40 (15A)
|
72
|
120
|
118
|
43
|
58
|
Rc 1/2"
|
1,285g
|
|
HPG-EX 21W50 (20A)
|
103
|
133
|
118
|
65
|
58
|
Rc 3/4"
|
1,530g
|
|
HPG-EX 21W60 (25A)
|
103
|
133
|
118
|
65
|
58
|
Rc 1"
|
1,830g
|
|
HPG-EX 22W30 (10A)
|
72
|
120
|
118
|
43
|
58
|
Rc 3/8"
|
1,345g
|
|
HPG-EX 22W40 (15A)
|
72
|
120
|
118
|
43
|
58
|
Rc 1/2"
|
1,310g
|
|
HPG-EX 22W50 (20A)
|
103
|
133
|
118
|
65
|
58
|
Rc 3/4"
|
1,990g
|
|
HPG-EX 22W60 (25A)
|
103
|
133
|
118
|
65
|
58
|
Rc 1"
|
1,830g
|
STANDARD SPECIFICATION
|
WORKING FLUID
|
AIR, WATER, OIL
|
PROTECTION GRADE
|
Ex d mb IIC T4 IP67
|
|
OPERATING PRESSURE
|
0.05 ~ 0.7 MPa
|
FLUID TEMPERATURE
|
0 ~ 60℃
|
|
VOLTAGE
|
AC220V, AC110V (50~60Hz)
DC24V, DC12V
|
BODY MATERIAL
|
BRASS
|
|
POWER CONSUMPTION
|
AC220V : 19VA
DC24V : 14W
|
SEAT MATERIAL
|
NBR
|
|
TEMPERATURE GRADE
|
T4 (≤135℃)
|
OPTION
|
CONNECTION : PF, NPT
|
* Specification of the products are subject to change without prior notice for quality improvement.
