FEATURES
Explosion-proof Certificate No.: 15-GA2BO-0257X
Explosion-proof grade : Ex d mb IIC T4 IP67
- The valve will be operated by a pilot-piston.
- The stainless steel body is suitable for corrosive fluids.
- The machine can work even at differential pressure "0".
APPLICATIONS
- Tester, Food & beverage processings, Petrochemical plants, Dyeing machines,
Industrial cleaning machines, Fluid control of the factory lines and fire explosive atmospheres.
※ Attention : Please restrict the use when the fluid used is in a viscous or contain impurities,
or when a disturbance of the pilot operation concerned the accumulation of corrosive.
|

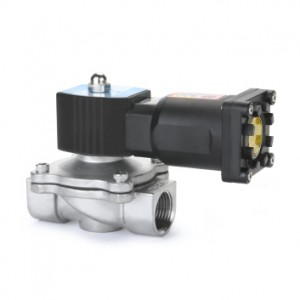

HPG-EX 21W30S / 21W40S /21W50S / 21W60S
|
|
|
HPG-EX 21W50SF / 21W60SF
ROTARY FLANGE PATENTED PRODUCT
|
|
|
SYMBOL
|
|
DIMENSION
|
MODEL
|
L
|
H
|
A
|
B
|
C
|
CONNECTION
|
WEIGHT
|
|
HPG-EX 21W30S (10A)
|
70
|
113
|
40
|
56
|
47
|
Rp 3/8"
|
1,420g
|
|
HPG-EX 21W40S (15A)
|
70
|
113
|
40
|
56
|
47
|
Rp 1/2"
|
1,340g
|
|
HPG-EX 21W50S (20A)
|
72
|
122
|
118
|
63
|
58
|
Rp 3/4"
|
1,448g
|
|
HPG-EX 21W60S (25A)
|
98
|
131
|
118
|
73
|
58
|
Rp 1"
|
1,880g
|
|
HPG-EX 21W50SF (20A)
|
134
|
137
|
118
|
100
|
58
|
KS 10K RF 20A
|
2,548g
|
|
HPG-EX 21W60SF (25A)
|
147
|
153.5
|
118
|
125
|
58
|
KS 10K RF 25A
|
3,979g
|
STANDARD SPECIFICATION
|
WORKING FLUID
|
AIR, WATER, OIL
|
PROTECTION GRADE
|
Ex d mb IIC T4 IP67
|
|
OPERATING PRESSURE
|
0.05 ~ 0.7 MPa
|
FLUID TEMPERATURE
|
0 ~ 110℃
|
|
VOLTAGE
|
AC220V, AC110V (50~60Hz)
DC24V, DC12V
|
BODY MATERIAL
|
STAINLESS
|
|
POWER CONSUMPTION
|
AC220V : 18VA
DC24V : 14W
|
SEAT MATERIAL
|
VITON
|
|
TEMPERATURE GRADE
|
T4 (≤135℃)
|
OPTION
|
CONNECTION : PT, NPT
|
* Specification of the products are subject to change without prior notice for quality improvement.
