HSM 2140 / 2150 / 2160 / 3120
FEATURES
- It can be manually operated and resistant to dust.
- It is easy to work with union type coupling method of the actuator and valve.
- It is easy to connect the pipe union and possible to save the cost because the inlet and outlet valves
designed to male and female.
|

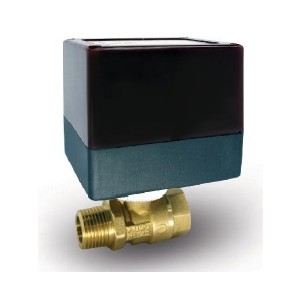

HSM 2140 / 2150 / 2160
|
|
|
HSM 3120
|
|
DIMENSION
|
MODEL
|
VALVE SIZE
|
D
|
A
|
B
|
E
|
ORIPICE
|
PORT
|
|
HSM 2140
|
15A
|
61
|
120
|
105
|
26
|
13
|
2WAY
|
|
HSM 2150
|
20A
|
66
|
130
|
112
|
32
|
15
|
|
HSM 2160
|
25A
|
78
|
140
|
128
|
39
|
10
|
|
HSM 3120
|
8A
|
47
|
120
|
105
|
20
|
10
|
3WAY (L-PORT)
|
STANDARD SPECIFICATION
|
DIVISION
|
BASIC SPECIFICATION
|
|
VALVE SIZE
|
8A ~ 25A
|
|
WORKING PRESSURE
|
0 ~ 1.0MPa
|
|
VOLTAGE
|
AC 220V
|
|
FLUID TEMPERATURE
|
0℃ ~ 70℃
|
|
TORQUE
|
40 Nm
|
|
OPERATING TIME
|
3 ~ 5 second
|
* Specification of the products are subject to change without prior notice for quality improvement.
