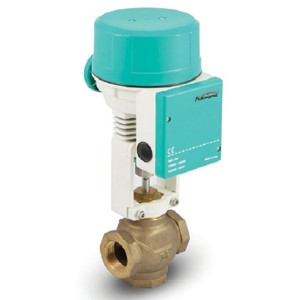

GVS 21.15 / 21.20 / 21.25 / 21.32 / 21.40 / 21.50
GXS 21.15 / 21.20 / 21.25 / 21.32 / 21.40 / 21.50
APPLICATIONS
- Piping for water or steam, Conditioning equipments, Boilers, Air conditioners, Sauna equipments.
|
GVS 21.15 / 21.20 / 21.25 / 21.32 / 21.40 / 21.50
2WAY CONTROL VALVE
|
|
DIMENSION
|
MODEL
|
SIZE
|
FLOW COEFFICIENT
(Cv)
|
Pmax
(MPa)
|
L
|
B
|
H1
|
H2
|
H
|
CONNECTION
|
|
2WAY CONTROL VALVE
|
GVS 21.15
|
15A
|
4.7
|
1.6
|
100
|
50
|
44
|
67.5
|
360
|
Rp15
|
|
GVS 21.20
|
20A
|
7.4
|
1.6
|
100
|
50
|
44
|
67.5
|
360
|
Rp20
|
|
GVS 21.25
|
25A
|
14
|
1.6
|
105
|
55
|
50
|
67.5
|
374
|
Rp25
|
|
GVS 31.32
|
32A
|
18.7
|
1.6
|
105
|
55
|
50
|
67.5
|
374
|
Rp32
|
|
GVS 21.40
|
40A
|
29
|
1.2
|
130
|
65
|
60
|
67.5
|
396
|
Rp40
|
|
GVS 21.50
|
50A
|
43.2
|
7.8
|
150
|
78
|
61
|
67.5
|
407
|
Rp50
|
|
3WAY CONTROL VALVE
|
GXS 21.15
|
15A
|
4.7
|
0.8
|
100
|
60
|
44
|
67.5
|
326
|
Rp15
|
|
GXS 21.20
|
20A
|
7.4
|
0.8
|
100
|
60
|
44
|
67.5
|
326
|
Rp20
|
|
GXS 21.25
|
25A
|
14
|
0.8
|
105
|
65
|
50
|
67.5
|
334
|
Rp25
|
|
GXS 21.32
|
32A
|
18.7
|
0.8
|
105
|
65
|
50
|
67.5
|
334
|
Rp32
|
|
GXS 21.40
|
40A
|
29
|
0.6
|
130
|
85
|
60
|
67.5
|
346
|
Rp40
|
|
GXS 21.50
|
50A
|
43.2
|
0.4
|
150
|
85
|
61
|
67.5
|
346
|
Rp50
|
STANDARD SPECIFICATION
|
DIVISION
|
BASIC SPECIFICATION
|
|
CONNECTION
|
PT SCREW TYPE
|
|
WORKING PRESSURE
|
1.0 MPa
|
|
BODY MATERIAL
|
BODY-BRONZE TRIM / DISK-SUS 304
|
|
VOLTAGE
|
AC 220V / AC 24V
|
|
FLUID TEMPERATURE
|
-25℃ ~ 130℃
|
|
OPERATING TIME
|
50 sec
|
|
OPTION
|
PCU( Proportional Control Unit), SIGNAL OUTPUT, DIGITAL LED DRIVER
|
* Specification of the products are subject to change without prior notice for quality improvement.
