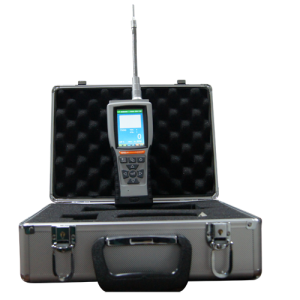

OC-906 portable pump-sunction gas detector used to inspect the single gas concentration. Suitable for the environmental monitor, industrial production, and other working place existing the harmful gas, with the purpose of protecting the humanity healthy and safety.
Features:
Intelligent probe and easy to calibrate or maintenance.
If any fault, warning, operator error, it will tip.
Internal CF calibration coefficients(only valid for VOC inspection).
Full color 3.5 inch TFT screen for displaying the measuring parameter.
The gas concentration could display as the digital and curve.
Support the USB port could connect the computer directly.
With the data storage function, the historic data could be check on the gas detector or computer.
With alarm record function, could keep the last four times alarming time and type.
With calibration record function, can save the last four times of calibrate time span.
Powerful rechargeable lithium battery, if low battery will automatic shut down.
High reported, low reported, TWA, STEL, Shut down time, pump speed, etc.
Technical Parameter:
|
Gas type
|
Combustible gas, oxygen, toxic gas, etc.
|
|
Sensor type
|
Electrochemical sensor, Catalytic combustion sensor, NDIR sensor, PID sensor
|
|
Sampling mode
|
Pump-suction sampling
|
|
Measuring range
|
According to different gas type
|
|
Resolution
|
According to different gas type
|
|
Precision
|
±2% F.S
|
|
Response time
|
<20s
|
|
Indicate way
|
LCD display of real-time concentration, buzzer alarm
|
|
Power supply
|
Rechargeable 4.2V, 3000mAh lithium battery
|
|
Working environment
|
Temperature: -40℃~70℃，humidity:15%~95%(non-condensing)
|
|
Explosion-proof
|
Exia II CT4
|
|
Protection degree
|
IP65
|
|
Size
|
228* 84 * 50.5mm
|
|
Weight
|
0.55KG
|
|
Warranty
|
12 months
|
Application:
Widely used in the petroleum, chemical industry, power, water treatment, tobacco, pharmaceutical, food industry, coal, metallurgy, municipal gas, paper, paint, textile, environment monitoring system, health monitoring system, etc.
Detection gas: any gas type of the following: CH2O, TVOC, CO, H2S, CO2, O2, NO2, NO, SO2, NH3, Cl2, PH3, O3, F2, HCN, ClO2, C2H4, C2H4O, SF6, etc.
