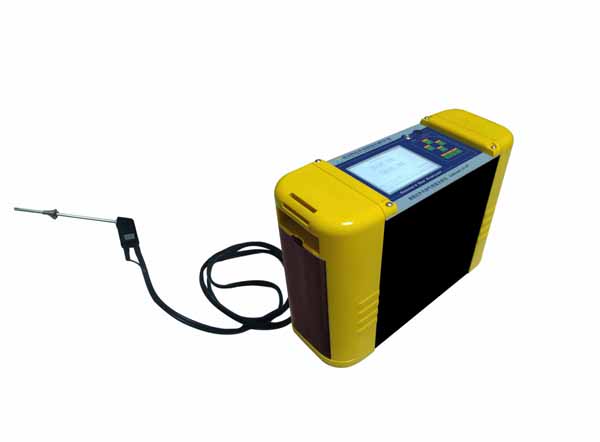

Portable Flue Gas Analyzer Gas board 3000 P
Products: Portable Flue Gas Analyzer—Gasboard 3000P
Category: Flue Gas Analyzer

   Introductiion
       It is economical portable type which mainly based on electrochemical sensors to measure the volume concentration of CO,CO2 ,O2 ,SO2 ,NO2 ,NO and HC in flue gas and to figure out excess air coefficient. This product has high precision, small volume, it is convenient to carry, simple to operate and it is extensively applied in steel, chemical, energy conservation monitoring, energy efficiency evaluation and other fields.
  Applications
     Combustion and emission control research or certification of Continuous Emission Monitoring System (CEMS), combustion efficiency monitoring for various industrial furnaces or refuse incinerator and boiler.

  Specifications


Measurement: SO2, NO, NO2, CO low, CO2, O2, HC(optional), CO high(optional)

Technology: CO high/CO2/HC (NDIR)

          CO low/SO2/NO/O2/NO2 (ECD)

Range: SO2: 0-2000ppm

      NO: 0-2000ppm

      NO2: 0-200ppm

CO low: 0-4000ppm

CO2: 0-25%

O2:0-25%

CO high: 0-10% (optional)

HC: 0-9999ppm (optional)

(Note: measurement range can be customized by the requirement.)

Resolution: CO2/CO high/O2: 0.01%

          SO2/NO/NO2/CO low/HC: 1ppm

Precision: CO high/CO2/HC (NDIR) ＜ ±2%FS

        SO2/NO/NO2/O2/CO low (ECD) ＜ ±3%FS

Gas flow: 0.7-1.2 L/min

Inlet pressure: 2kPa-50kPa

Sampling gas condition: no dust, no water, no tar

Response time (T90): <10s (NDIR)

Power supply: built-in rechargeable lithium battery

Other parameters (optional): gas temperature, gas pressure, gas velocity, ambient temperature and ambient pressure.



    Features
       1. Simultaneous measurement of O2, SO2, CO2, CO low, CO high, HC, NO, NO2 (optional), optional temperature, pressure, flow.

2.  NDIR-technology to measure CO high ,CO2 and HC.

3.  Maximum measure six gases in one gas analyzer.

4.  Auto zero function.

5.  Built-in pump.

6.  Calculation of Lambda and combustion efficiency.

7.  LCD (320 * 240) display.

8.  RS232 output.

9.  Weight: 6KG
