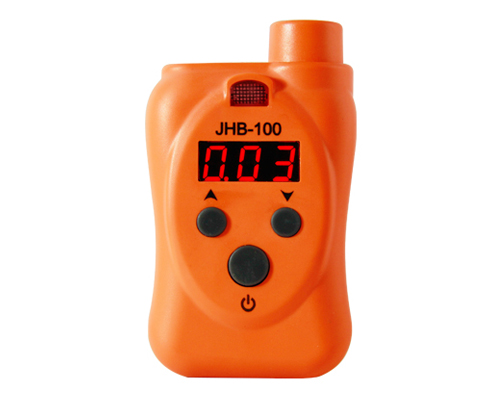

Products: Handheld Infrared Methane Gas Detector—JHB Series |
|
Category: Gas Detector |
|
Introdutions
JHB series infrared methane alarm detector is in compliance with mining products certification, it is mainly applied in coal mine, natural gas, CBM (Coal bed methane), rubbish filling, sewage treatment, anaerobic fermentation and other fields for CH4 gas leakage detection. Infrared gas filter technique, CH4 measurement can not be interfered by other gas compositions.
Applications
Portable CH4 detector is an ideal instrument with alarm function to detect the concentration of CH4, such as chemical industry, oil & gas storage, mine, metallurgy, liquefied gas station, spray paint, petroleum, fuel gas transport, as well as the leakage of nature gas.
Specifications
Measurement method: NDIR
Range: CH4: 0-5%vol (0-100%LEL), 0-100%vol
Accuracy: For range 0-1%vol: ±0.06%
For range 1-100%vol: ±6% of reading
For range 0-100%LEL: ±5% LEL
Warm up: 30s
Response time T90: ＜25s at 20℃
Working voltage: DC 3.7v; 1300mAh lithium battery
Signal output: LED display + audible-visual alarming
Working temperature: -20℃ to 55℃
Dimensions: 100*68*31.5mm
Stand-by time: ≥ 10 hrs
Lifespan: ≥ 10 years
Features
1、Independent intellectual property rights of infrared gas analysis technology.
2、Dual-range setting with high concentrations of methane gas leak detection and alarm function.
3、High and low alarm points can be customized settings.
4、Air auto-zero calibration feature.
5、Proliferation Sampling.
6、Fast response.
7、LED digital tube display real-time gas concentrations.
8、Rechargeable lithium battery.
9、Small size, simple operation.
