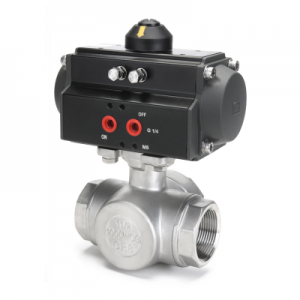

HAD-310BV / 315BV / 320BV / 325BV / 332BV / 340BV / 350BV
APPLICATIONS
- Piping for water or steam, Industrial machinery piping, Sterilizers, Boilers, Air conditioners, Lubricators,
Medical equipments, Vacuum packing, Automation equipment, Specially equipped Vehicles
DIMENSION
|
MODEL
|
MOUNTED ACTUATOR
|
VALVE SIZE
|
L
|
H1
|
H2
|
A
|
B
|
C
|
PORT SIZE
|
|
HAD-310BV
|
HAD-42
|
10A
|
80
|
43
|
75
|
115
|
57
|
41
|
12
|
|
HAD-315BV
|
HAD-42
|
15A
|
80
|
43
|
75
|
115
|
57
|
41
|
12
|
|
HAD-320BV
|
HAD-50
|
20A
|
84
|
49
|
89
|
150
|
72
|
41
|
15
|
|
HAD-325BV
|
HAD-50
|
25A
|
103
|
61
|
89
|
150
|
72
|
52
|
20
|
|
HAD-332BV
|
HAD-63
|
32A
|
111
|
64
|
105
|
175
|
83
|
56
|
25
|
|
HAD-340BV
|
HAD-63
|
40A
|
126
|
73
|
105
|
175
|
83
|
63
|
32
|
|
HAD-350BV
|
HAD-75
|
50A
|
147
|
83
|
123
|
219
|
96
|
75
|
38
|
MATERIAL
|
NO
|
DESIGNATION
|
MATERIAL
|
Qty
|
|
1
|
BALL VALVE
|
STS304 / STS316
|
1
|
|
2
|
BOLT
|
STS304
|
4
|
|
3
|
WASHER
|
STS304
|
4
|
|
4
|
ACTUATOR
|
-
|
1
|
SPECIFICATIONS TABLE
|
DIVISION
|
BASIC SPECIFICATION
|
OPTION
|
|
PORT SIZE
|
8A ~ 50A
|
|
WORKING PRESSURE
|
KS 1.0 MPa
|
KS 2.0 MPa
|
|
CONNECTION WAY
|
PT SCREW
|
CLAMP
|
|
BODY MATERIAL
|
SUS 304
|
SUS 316(L)
|
|
SEAT MATERIAL
|
PTFE
|
CARBON / RTFE
|
|
FLUID TEMPERATURE
|
0℃ ~ 100℃
|
140℃
|
|
ACTUATOR
|
DOUBLE ACTING
|
SINGLE ACTING
|
|
PORT
|
L-PORT
|
T-PORT
|
|
ADDITIONAL OPTIONS
|
SOLENOID V/V, LIMIT S/W BOX, SILENCER, FILTER+REGULATOR, SPEED CONTROL
|
* Specification of the products are subject to change without prior notice for quality improvement.
