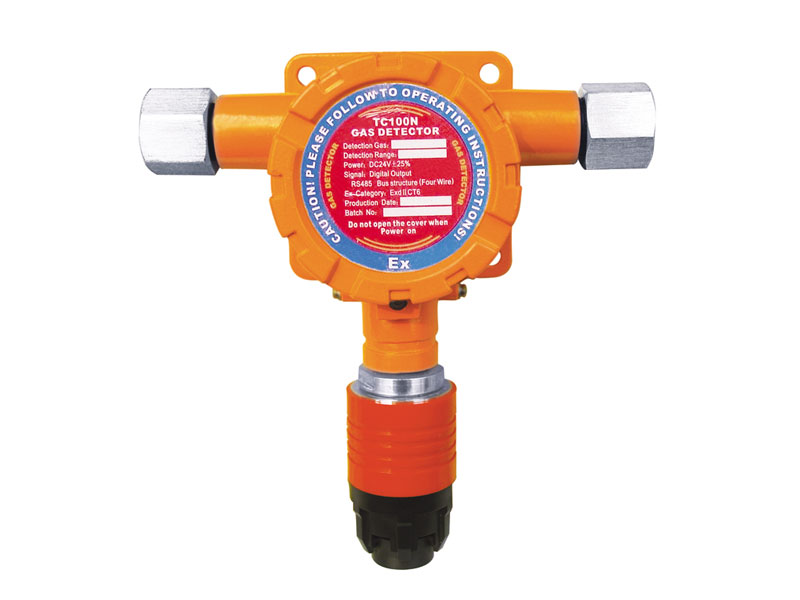

TC100N WITH ATEX APPROVED
-
Sensor type: Catalytic or electrochemical gas sensor
-
Sampling: Natural diffusion
-
Temperature: -40～70℃ (LEL) / -20～50℃ (toxic gas)
-
Working pressure: 86kPa～106kPa
-
Consumption: 2W
-
Weight: about 1200g
Description:
TC100N fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output.
Applications:
The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists.
Features:
4-20mA or RS485 output optional
ATEX certificate
Technial Data :
Sensor type: Catalytic or electrochemical gas sensor
Sampling: Natural diffusion
Accuracy: ≤±5%F.S.
Response time (T90): ≤30s (LEL) / ≤60s (toxic gas)
Working condition:
Temperature: -40～70℃ (LEL) / -20～50℃ (toxic gas)
Humidity: ≤95%RH (no condensation)
Explosion-proof grade: ExdⅡCT6
Protection grade: IP55
Working voltage: DC24V±25%
Working pressure: 86kPa～106kPa
Signal output: 4-20mA 3-line
Consumption: 2W
Cable required: 3-line cable, ≥3 mm2
Transmission distance: ≤1000m
Dimension: l×b×h mm 196×186×68.5
Weight: about 1200g
Package and Accessories:
pc per carton, size: 25*27*13cm
|
